當前位置：首頁 » 歐美晶振 » 日蝕晶振 » E1SMA14-25.000M,Ecliptek日蝕晶振,25MHz,兩腳貼片晶振

prevnext

E1SMA14-25.000M,Ecliptek日蝕晶振,25MHz,兩腳貼片晶振

頻率：25MHz

尺寸：13.3x4.85x3.2mm

E1SMA14-25.000M,Ecliptek日蝕晶振,25MHz,兩腳貼片晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：E1S系列，編碼為：E1SMA14-25.000M，頻率：25MHz，負載電容：14pF，工作溫度范圍：-40℃至+85℃，頻率穩定性：±20ppm，頻率容差：±15ppm，小體積晶振尺寸：13.3x4.85x3.2mm封裝，兩腳貼片晶振，無源晶振，橢圓形晶振，石英晶振，石英晶體諧振器，無鉛晶振。應用于：通訊設備晶振，汽車電子晶振，無線模塊晶振，物聯網晶振，安防設備晶振，數碼電子等應用。

訂購熱線：86-0755-27838351

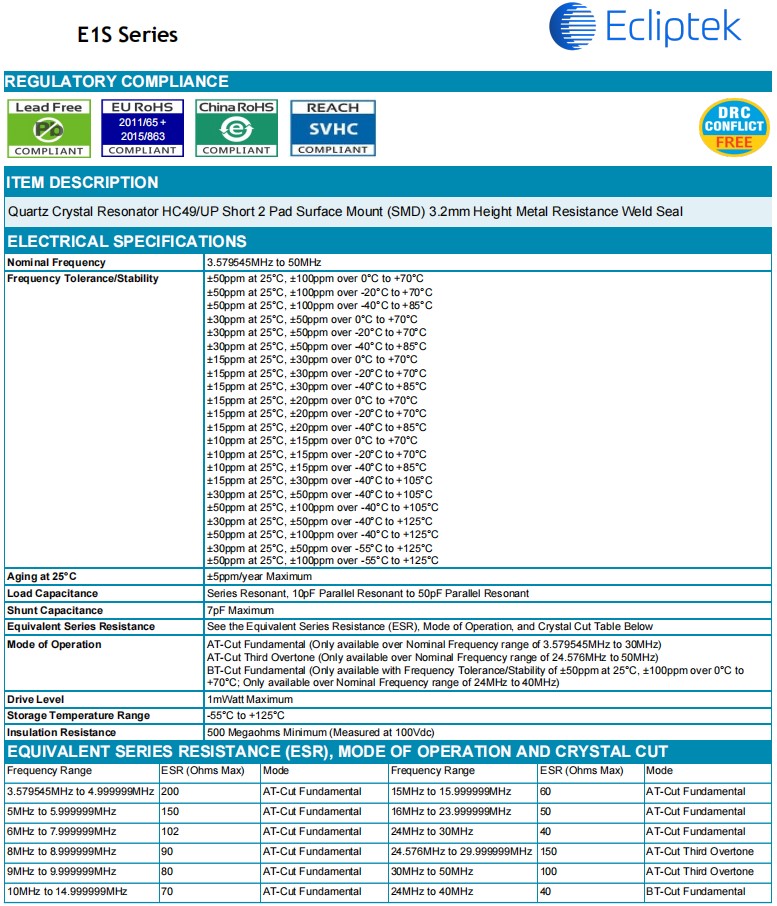

E1SMA14-25.000M,Ecliptek日蝕晶振,25MHz,兩腳貼片晶振,參數表

Nominal Frequency		25 MHz
Frequency Tolerance/Stability		±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C
Aging at 25°C		±5ppm/year Maximum
Load Capacitance		Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant
Shunt Capacitance		7pF Maximum
Equivalent Series Resistance		See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below
Mode of Operation		AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz)
Drive Level		1mWatt Maximum
Storage Temperature Range		-55°C to +125°C
Insulation Resistance		500 Megaohms Minimum (Measured at 100Vdc)

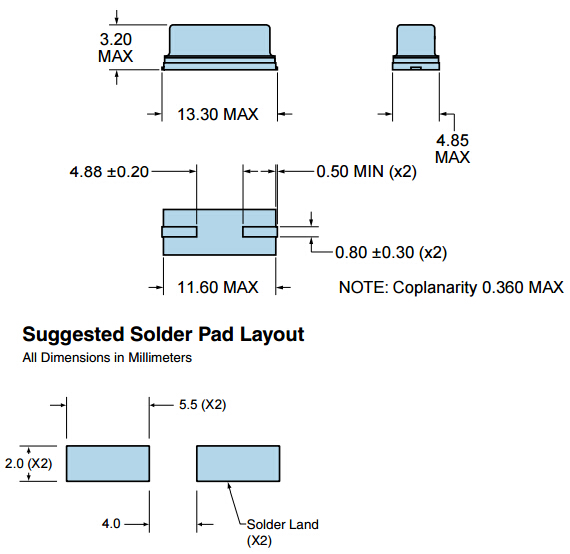

E1SMA14-25.000M,Ecliptek日蝕晶振,25MHz,兩腳貼片晶振,尺寸圖

產品編碼	品牌	型號	頻率	負載電容
E1SEA18-4.2944M TR	Ecliptek晶振	E1S	4.2944 MHz	18 pF
E1SEA20-25.000M	Ecliptek晶振	E1S	25 MHz	20 pF
E1SEA20-4.000M TR	Ecliptek晶振	E1S	4 MHz	20 pF
E1SEA20-8.000M	Ecliptek晶振	E1S	8 MHz	20 pF
E1SEA20-8.000M TR	Ecliptek晶振	E1S	8 MHz	20 pF
E1SEA40-8.704M TR	Ecliptek晶振	E1S	8.704 MHz	40 pF
E1SFA12-3.6864M TR	Ecliptek晶振	E1S	3.6864 MHz	12 pF
E1SFA16-6.290M TR	Ecliptek晶振	E1S	6.29 MHz	16 pF
E1SFA18-12.000M TR	進口晶振	E1S	12 MHz	18 pF
E1SFA18-14.31818M TR	Ecliptek晶振	E1S	14.31818 MHz	18 pF
E1SFA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SFA18-3.6864M	Ecliptek晶振	E1S	3.6864 MHz	18 pF
E1SFA18-7.3728M TR	Ecliptek晶振	E1S	7.3728 MHz	18 pF
E1SFA18-8.000M TR	Ecliptek晶振	E1S	8 MHz	18 pF
E1SFA20-25.000M	Ecliptek晶振	E1S	25 MHz	20 pF
E1SFAS-24.000M TR	Ecliptek晶振	E1S	24 MHz
E1SGA18-14.7456M TR	Ecliptek晶振	E1S	14.7456 MHz	18 pF
E1SGA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SHA10-29.950M TR	Ecliptek晶振	E1S	29.95 MHz	10 pF
E1SHA20-25.000M TR	Ecliptek晶振	E1S	25 MHz	20 pF
E1SJA16-14.31818M	Ecliptek晶振	E1S	14.31818 MHz	16 pF
E1SJA18-24.000M TR	Ecliptek晶振	E1S	24 MHz	18 pF
E1SJA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SJA18-4.000M TR	Ecliptek晶振	E1S	4 MHz	18 pF
E1SJA20-25.000M	Ecliptek晶振	E1S	25 MHz	20 pF
E1SMA14-25.000M	Ecliptek晶振	E1S	25 MHz	14 pF
E1SMA18-25.000M	Ecliptek晶振	E1S	25 MHz	18 pF
E1SMA18-27.000M	Ecliptek晶振	E1S	27 MHz	18 pF
E1SMA18-27.000M TR	Ecliptek晶振	E1S	27 MHz	18 pF
E1SNA16-25.000M TR	Ecliptek晶振	E1S	25 MHz	16 pF
E1SNA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SSA18-5.000M TR	Ecliptek晶振	E1S	5 MHz	18 pF
E1SSA20-10.000M	Ecliptek晶振	E1S	10 MHz	20 pF
E1SSA20-10.000M TR	Ecliptek晶振	E1S	10 MHz	18 pF
E1WSDA12-32.768K	Ecliptek晶振	E1WS	32.768 kHz	12.5 pF
E1WSDA12-32.768K TR	Ecliptek晶振	E1WS	32.768 kHz	12.5 pF
EA1216MA08-25.000M TR	Ecliptek晶振	EA1216	25 MHz	8 pF
EA1620MA10-25.000M TR	Ecliptek晶振	EA1620	25 MHz	10 pF
EA3560LA20-25.000M TR	Ecliptek晶振	EA3560	25 MHz	20 pF
EA5070CA12-24.000M TR	Ecliptek晶振	EA5070	24 MHz	12 pF
EA5070CA18-20.000M TR	Ecliptek晶振	EA5070	20 MHz	18 pF
EA5070CAS-8.000M TR	Ecliptek晶振	EA5070	8 MHz	8 pF
EA5070FA16-22.5792M TR	Ecliptek晶振	EA5070	22.5792 MHz	16 pF
EA5070FA18-10.000M	貼片晶振	EA5070	10 MHz	18 pF
EA5070FA18-14.31818M	Ecliptek晶振	EA5070	14.31818 MHz	18 pF
EA5070FA18-24.000M TR	Ecliptek晶振	EA5070	24 MHz	18 pF
EA5070FA18-25.000M TR	Ecliptek晶振	EA5070	25 MHz	18 pF
EA5070FA18-27.000M TR	Ecliptek晶振	EA5070	27 MHz	18 pF
EA5070FA20-7.3728M	Ecliptek晶振	EA5070	7.3728 MHz	20 pF
EA5070GA18-25.000625M	Ecliptek晶振	EA5070	25.000625 MHz	18 pF
EA5070GA18-25.000625M TR	Ecliptek晶振	EA5070	25.000625 MHz	18 pF
EA5070GA20-7.3728M	Ecliptek晶振	EA5070	7.3728 MHz	20 pF
EA5070JA18-25.000625M TR	Ecliptek晶振	EA5070	25.000625 MHz	18 pF
EA5070JA20-14.31818M TR	Ecliptek晶振	EA5070	14.31818 MHz	20 pF
EA5070JA20-6.000M TR	Ecliptek晶振	EA5070	6 MHz	20 pF
EA5070PA20-8.000M	Ecliptek晶振	EA5070	8 MHz	20 pF
EB2025YA10-25.000M TR	Ecliptek晶振	EB2025	25 MHz	10 pF
EB3250AYA08-25.000M TR	Ecliptek晶振	EB3250A	25 MHz	8 pF
EB8WSDX12-32.768K TR	Ecliptek晶振	EB8WS	32.768 kHz	12.5 pF

E1SMA14-25.000M Ecliptek日蝕晶振 25MHz 兩腳貼片晶振
