Abracon’sABS07AIGis a high temperature quartz crystal that is AEC-Q200 qualified and produced with a TSI6949 Production Line Certifications. This device features a wide operating temperature of -40°C to +125°C and is the perfect solution for commercial or industrial applications in extreme environments. With an ultra-low profile form, the ABS07AIG can be implemented in space constrained designs like wearables or a vehicle’s infotainment system.

This quartz crystal is in a hermetically seam sealed ceramic packaging which offers long term reliability in applications like navigation, smartphones, and wireless communication. Similar to its ABS07 family, the automotive series can execute tight frequency stability as low as 10 ppm to ensure its time management is precise and accurate. While the ABS07AIG series can execute extraneous requirements, it is optimized for low power consumption to preserve battery life, making it ideal for a wide range of applications.

Abracon晶振的ABS07AIG是一種高溫石英晶體，通過AEC-Q200認證，并通過TSI6949生產線認證。該設備的工作溫度范圍為-40°C至+125°C，是極端環境下商業或工業應用的完美解決方案。ABS07AIG的外形非常低調，可以應用于空間有限的設計中，如可穿戴設備或汽車的信息娛樂系統。全球定位系統主流的高溫石英晶體ABS07AIG-32.768KHZ-1-T

這種石英晶體是在密封縫密封陶瓷包裝，提供長期可靠性的應用，如導航，智能手機，和無線通信。與ABS07系列類似，汽車系列可以執行低至10ppm的嚴格頻率穩定性，以確保其時間管理精確準確。雖然ABS07AIG系列可以執行無關的要求，但它針對低功耗進行了優化，以保持電池壽命，使其成為廣泛應用的理想選擇。全球定位系統主流的高溫石英晶體ABS07AIG-32.768KHZ-1-T

Manufacturer Part Number 原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency頻率
ABM3C-24.576MHZ-D4Y-T	Abracon晶振	ABM3C	MHz Crystal	24.576MHz
ABM3C-14.31818MHZ-D4Y-T	Abracon晶振	ABM3C	MHz Crystal	14.31818MHz
ABS06L-32.768KHZ-T	Abracon晶振	ABS06L	kHz Crystal (Tuning Fork)	32.768kHz
ABMM-11.0592MHZ-B2-T	Abracon晶振	ABMM	MHz Crystal	11.0592MHz
ABM8G-14.31818MHZ-B4Y-T	Abracon晶振	ABM8G	MHz Crystal	14.31818MHz
ABM8G-13.000MHZ-B4Y-T	Abracon晶振	ABM8G	MHz Crystal	13MHz
ABM8G-30.000MHZ-B4Y-T	Abracon晶振	ABM8G	MHz Crystal	30MHz
ABM8G-33.000MHZ-B4Y-T	Abracon晶振	ABM8G	MHz Crystal	33MHz
ABM8G-20.000MHZ-B4Y-T	Abracon晶振	ABM8G	MHz Crystal	20MHz
ABS07-LR-32.768KHZ-6-T	Abracon晶振	ABS07-LR	kHz Crystal (Tuning Fork)	32.768kHz
ABM10-27.000MHZ-E20-T	Abracon晶振	ABM10	MHz Crystal	27MHz
ABM10-20.000MHZ-E20-T	Abracon晶振	ABM10	MHz Crystal	20MHz
ABLS-LR-4.9152MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	4.9152MHz
ABM10-25.000MHZ-E20-T	Abracon晶振	ABM10	MHz Crystal	25MHz
ABLS-LR-4.194304MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	4.194304MHz
ABMM2-32.000MHZ-E2F-T	Abracon晶振	ABMM2	MHz Crystal	32MHz
ABMM2-14.31818MHZ-E2-T	Abracon晶振	ABMM2	MHz Crystal	14.31818MHz
ABMM2-32.768MHZ-E2F-T	Abracon晶振	ABMM2	MHz Crystal	32.768MHz
ABMM2-19.6608MHZ-E2-T	Abracon晶振	ABMM2	MHz Crystal	19.6608MHz
ABM7-32.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	32MHz
ABM7-33.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	33MHz

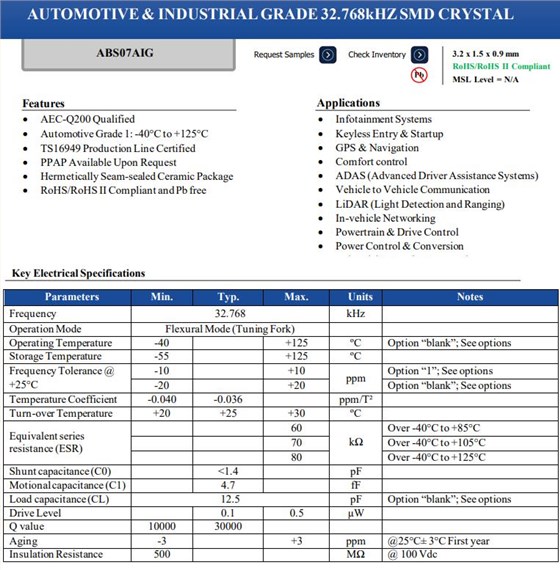

ABS07AIG-32.768KHZ-1-T是一款超小型，貼片型小尺寸貼片中低頻，0.9mm高度，適用于高密度電路板，接縫密封陶瓷包裝提供優秀，環境和耐熱性，32.768K輸出頻率，-40°C 至 +125°C 工作溫度范圍，±10ppm 頻率精度，<1.4 pF 并聯電容，12.5 pF 負載電容，±3 ppm 老化 @25°C ± 3°C 第一年.

應用程序：信息娛樂系統，無鑰匙進入和設置，全球定位系統和導航，車對車通信，激光雷達（光探測和測距），車載網絡，動力總成和驅動控制.
