康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本WLAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
高質量的瑞斯克時鐘振蕩器原廠編碼曝光C3390-30.000，知名美國CRYSTEK瑞斯克公司最主流的產品深受市場的追棒，作為行業的領先者，一直以來走在技術的最前沿，憑借著自身尖端的技術，生產大量優質的產品，所生產的元器件包含貼片晶振，SPXO晶體振蕩器，石英晶振等產品，產品是經過嚴格化高要求的生產體系制作出來的，符合國家認證標準，產品被廣泛應用各個領域之中。

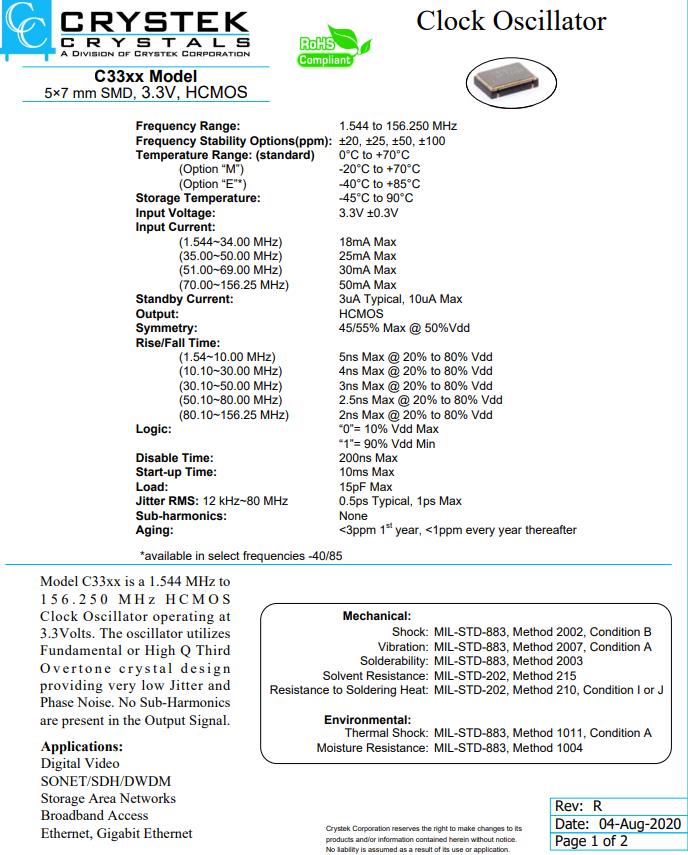

瑞斯克公司發布新型產品編碼C3390-30.000，型號C33，尺寸為7.2*5.0mm,頻率為30MHz，頻率穩定性100ppm.工作溫度0°C~+70°C，C33xx型號是一款1.544MHzto156.250MHz HCMOS時鐘振蕩器工作在 3.3伏。OSC晶振利用 基本面還是高Q第三泛音晶體設計提供非常低的抖動相位噪聲。沒有次諧波出現在輸出信號中。
| 晶振廠家原廠代碼 | 品牌 | 型號 | 類型 | 頻率 | 頻率穩定度 | 工作溫度 |
| C3390-14.318180 | CRYSTEK晶振 | C33 | XO (Standard) | 14.31818MHz | ±100ppm | 0°C ~ 70°C |
| C3390-15.360 | CRYSTEK晶振 | C33 | XO (Standard) | 15.36MHz | ±100ppm | 0°C ~ 70°C |
| C3390-16.000 | CRYSTEK晶振 | C33 | XO (Standard) | 16MHz | ±100ppm | 0°C ~ 70°C |
| C3390-16.384 | CRYSTEK晶振 | C33 | XO (Standard) | 16.384MHz | ±100ppm | 0°C ~ 70°C |
| C3390-18.432 | CRYSTEK晶振 | C33 | XO (Standard) | 18.432MHz | ±100ppm | 0°C ~ 70°C |
| C3390-19.440 | CRYSTEK晶振 | C33 | XO (Standard) | 19.44MHz | ±100ppm | 0°C ~ 70°C |
| C3390-2.048 | CRYSTEK晶振 | C33 | XO (Standard) | 2.048MHz | ±100ppm | 0°C ~ 70°C |
| C3390-20.000 | CRYSTEK晶振 | C33 | XO (Standard) | 20MHz | ±100ppm | 0°C ~ 70°C |
| C3390-20.480 | CRYSTEK晶振 | C33 | XO (Standard) | 20.48MHz | ±100ppm | 0°C ~ 70°C |
| C3390-24.000 | CRYSTEK晶振 | C33 | XO (Standard) | 24MHz | ±100ppm | 0°C ~ 70°C |
| C3390-24.576 | CRYSTEK晶振 | C33 | XO (Standard) | 24.576MHz | ±100ppm | 0°C ~ 70°C |
| C3390-24.704 | CRYSTEK晶振 | C33 | XO (Standard) | 24.704MHz | ±100ppm | 0°C ~ 70°C |
| C3390-25.000 | CRYSTEK晶振 | C33 | XO (Standard) | 25MHz | ±100ppm | 0°C ~ 70°C |
| C3390-3.686400 | CRYSTEK晶振 | C33 | XO (Standard) | 3.6864MHz | ±100ppm | 0°C ~ 70°C |
| C3390-30.000 | CRYSTEK晶振 | C33 | XO (Standard) | 30MHz | ±100ppm | 0°C ~ 70°C |
| C3390-32.000 | CRYSTEK晶振 | C33 | XO (Standard) | 32MHz | ±100ppm | 0°C ~ 70°C |
| C3390-32.768 | CRYSTEK晶振 | C33 | XO (Standard) | 32.768MHz | ±100ppm | 0°C ~ 70°C |
| C3390-33.000 | CRYSTEK晶振 | C33 | XO (Standard) | 33MHz | ±100ppm | 0°C ~ 70°C |
| C3390-33.333 | CRYSTEK晶振 | C33 | XO (Standard) | 33.333MHz | ±100ppm | 0°C ~ 70°C |
| C3390-34.368 | CRYSTEK晶振 | C33 | XO (Standard) | 34.368MHz | ±100ppm | 0°C ~ 70°C |
| C3390-35.000 | CRYSTEK晶振 | C33 | XO (Standard) | 35MHz | ±100ppm | 0°C ~ 70°C |
| C3390-35.328 | CRYSTEK晶振 | C33 | XO (Standard) | 35.328MHz | ±100ppm | 0°C ~ 70°C |
| C3390-4.000 | CRYSTEK晶振 | C33 | XO (Standard) | 4MHz | ±100ppm | 0°C ~ 70°C |
| C3390-4.096 | CRYSTEK晶振 | C33 | XO (Standard) | 4.096MHz | ±100ppm | 0°C ~ 70°C |
| C3390-40.000 | CRYSTEK晶振 | C33 | XO (Standard) | 40MHz | ±100ppm | 0°C ~ 70°C |
| C3390-44.736 | CRYSTEK晶振 | C33 | XO (Standard) | 44.736MHz | ±100ppm | 0°C ~ 70°C |
| C3390-45.000 | CRYSTEK晶振 | C33 | XO (Standard) | 45MHz | ±100ppm | 0°C ~ 70°C |
| C3390-49.152 | CRYSTEK晶振 | C33 | XO (Standard) | 49.152MHz | ±100ppm | 0°C ~ 70°C |
| C3390-50.000 | CRYSTEK晶振 | C33 | XO (Standard) | 50MHz | ±100ppm | 0°C ~ 70°C |
| C3390-51.840 | CRYSTEK晶振 | C33 | XO (Standard) | 51.84MHz | ±100ppm | 0°C ~ 70°C |
| C3390-6.176 | CRYSTEK晶振 | C33 | XO (Standard) | 6.176MHz | ±100ppm | 0°C ~ 70°C |
| C3390-7.372800 | CRYSTEK晶振 | C33 | XO (Standard) | 7.3728MHz | ±100ppm | 0°C ~ 70°C |
| C3390-8.000 | CRYSTEK晶振 | C33 | XO (Standard) | 8MHz | ±100ppm | 0°C ~ 70°C |
| C3390-8.064 | CRYSTEK晶振 | C33 | XO (Standard) | 8.064MHz | ±100ppm | 0°C ~ 70°C |
| C3390-8.192 | CRYSTEK晶振 | C33 | XO (Standard) | 8.192MHz | ±100ppm | 0°C ~ 70°C |
| C3392-1.544 | CRYSTEK晶振 | C33 | XO (Standard) | 1.544MHz | ±50ppm | 0°C ~ 70°C |
| C3392-1.843200 | CRYSTEK晶振 | C33 | XO (Standard) | 1.8432MHz | ±50ppm | 0°C ~ 70°C |
| C3392-10.000 | CRYSTEK晶振 | C33 | XO (Standard) | 10MHz | ±50ppm | 0°C ~ 70°C |
| C3392-12.000 | CRYSTEK晶振 | C33 | XO (Standard) | 12MHz | ±50ppm | 0°C ~ 70°C |
| C3392-12.288 | CRYSTEK晶振 | C33 | XO (Standard) | 12.288MHz | ±50ppm | 0°C ~ 70°C |
| C3392-12.352 | CRYSTEK晶振 | C33 | XO (Standard) | 12.352MHz | ±50ppm | 0°C ~ 70°C |
| C3392-14.318180 | CRYSTEK晶振 | C33 | XO (Standard) | 14.31818MHz | ±50ppm | 0°C ~ 70°C |
| C3392-15.360 | CRYSTEK晶振 | C33 | XO (Standard) | 15.36MHz | ±50ppm | 0°C ~ 70°C |
| C3392-16.0000 | CRYSTEK晶振 | C33 | XO (Standard) | 16MHz | ±50ppm | 0°C ~ 70°C |
| C3392-16.384 | CRYSTEK晶振 | C33 | XO (Standard) | 16.384MHz | ±50ppm | 0°C ~ 70°C |
| C3392-18.432 | CRYSTEK晶振 | C33 | XO (Standard) | 18.432MHz | ±50ppm | 0°C ~ 70°C |
| C3392-19.440 | CRYSTEK晶振 | C33 | XO (Standard) | 19.44MHz | ±50ppm | 0°C ~ 70°C |
| C3392-2.048 | CRYSTEK晶振 | C33 | XO (Standard) | 2.048MHz | ±50ppm | 0°C ~ 70°C |
| C3392-20.000 | CRYSTEK晶振 | C33 | XO (Standard) | 20MHz | ±50ppm | 0°C ~ 70°C |
| C3392-20.480 | CRYSTEK晶振 | C33 | XO (Standard) | 20.048MHz | ±50ppm | 0°C ~ 70°C |
| C3392-24.000 | CRYSTEK晶振 | C33 | XO (Standard) | 24MHz | ±50ppm | 0°C ~ 70°C |
| C3392-24.576 | CRYSTEK晶振 | C33 | XO (Standard) | 24.576MHz | ±50ppm | 0°C ~ 70°C |
| C3392-24.704 | CRYSTEK晶振 | C33 | XO (Standard) | 24.704MHz | ±50ppm | 0°C ~ 70°C |
| C3392-25.000 | 瑞斯克晶振 | C33 | XO (Standard) | 25MHz | ±50ppm | 0°C ~ 70°C |
| C3392-3.686400 | CRYSTEK晶振 | C33 | XO (Standard) | 3.6864MHz | ±50ppm | 0°C ~ 70°C |
| C3392-30.000 | CRYSTEK晶振 | C33 | XO (Standard) | 30MHz | ±50ppm | 0°C ~ 70°C |
| C3392-32.000 | CRYSTEK晶振 | C33 | XO (Standard) | 32MHz | ±50ppm | 0°C ~ 70°C |
| C3392-32.768 | CRYSTEK晶振 | C33 | XO (Standard) | 32.768MHz | ±50ppm | 0°C ~ 70°C |
| C3392-33.000 | CRYSTEK晶振 | C33 | XO (Standard) | 33MHz | ±50ppm | 0°C ~ 70°C |
| C3392-33.333 | CRYSTEK晶振 | C33 | XO (Standard) | 33.333MHz | ±50ppm | 0°C ~ 70°C |
| C3392-34.368 | CRYSTEK晶振 | C33 | XO (Standard) | 34.368MHz | ±50ppm | 0°C ~ 70°C |
| C3392-35.000 | CRYSTEK晶振 | C33 | XO (Standard) | 35MHz | ±50ppm | 0°C ~ 70°C |
| C3392-35.328 | CRYSTEK晶振 | C33 | XO (Standard) | 35.328MHz | ±50ppm | 0°C ~ 70°C |
| C3392-4.000 | CRYSTEK晶振 | C33 | XO (Standard) | 4MHz | ±50ppm | 0°C ~ 70°C |
| C3392-4.096 | CRYSTEK晶振 | C33 | XO (Standard) | 4.096MHz | ±50ppm | 0°C ~ 70°C |
| C3392-40.000 | CRYSTEK晶振 | C33 | XO (Standard) | 40MHz | ±50ppm | 0°C ~ 70°C |
| C3392-44.736 | CRYSTEK晶振 | C33 | XO (Standard) | 44.736MHz | ±50ppm | 0°C ~ 70°C |
| C3392-45.000 | CRYSTEK晶振 | C33 | XO (Standard) | 45MHz | ±50ppm | 0°C ~ 70°C |
| C3392-49.152 | CRYSTEK晶振 | C33 | XO (Standard) | 49.152MHz | ±50ppm | 0°C ~ 70°C |
| C3392-50.000 | CRYSTEK晶振 | C33 | XO (Standard) | 50MHz | ±50ppm | 0°C ~ 70°C |
