高頻,超穩定的TCXO晶體振蕩器TKETTLJTNF-26.000000超級適合于衛星通訊,TK series is a high frequency, ultra stable and low jitter VCTCXO with frequency ranges from 40MHz to 150MHz. Its high stability and low phase jitter (as low as 60fs under 12KHz – 20MHz) can effectively reduce the jitter in telecommunication systems and improve the overall system noise performance.

TK series also fulfills Synchronous Ethernet and clock packet (ITU-T G.826x and G.827x) timing requirements. It complies with the IEEE1588 standard reference timing source requirement for either top-of-rack switches or leaf switches topology. The TK type TCXO with ultra-low phase noise performance at carrier frequency of 100MHz and the far-out phase noise <-160dBc/Hz @ 1KHz offset. So it makes it ideal for O-RAN base station, Microwave base station and small cell base station applications.

TK系列有源晶振是一種高頻、超穩定、低抖動的VCTCXO，頻率范圍為40MHz ~ 150MHz。其高穩定性和低相位抖動(在12KHz - 20MHz下可低至60fs)，可有效降低電信系統的抖動，提高系統整體噪聲性能。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Type 類型	Frequency 頻率	Voltage - Supply電壓
VTEUPLJANF-25.000000	Taitien	VT	VCXO	25MHz	3.3V
VTEUPLJANF-25.000000	Taitien	VT	VCXO	25MHz	3.3V
VTEUPLJANF-25.000000	Taitien	VT	VCXO	25MHz	3.3V
VTEUPLJANF-16.384000	Taitien	VT	VCXO	16.384MHz	3.3V
VTEUPLJANF-16.384000	Taitien	VT	VCXO	16.384MHz	3.3V
VTEUPLJANF-16.384000	Taitien	VT	VCXO	16.384MHz	3.3V
TXEACDSANF-12.288000	Taitien	TX	VCTCXO	12.288MHz	2.8 V ~ 3.3 V
TXEACDSANF-12.288000	Taitien	TX	VCTCXO	12.288MHz	2.8 V ~ 3.3 V
TXEACDSANF-12.288000	Taitien	TX	VCTCXO	12.288MHz	2.8 V ~ 3.3 V
TXETBDSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V
TXETBDSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V
TXETBDSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V
TXETBLSANF-40.000000	Taitien	TX	TCXO	40MHz	2.8 V ~ 3.3 V
TXETBLSANF-40.000000	Taitien	TX	TCXO	40MHz	2.8 V ~ 3.3 V
TXETBLSANF-40.000000	Taitien	TX	TCXO	40MHz	2.8 V ~ 3.3 V
TXETDDSANF-30.000000	Taitien臺產晶振	TX	TCXO	30MHz	2.8 V ~ 3.3 V
TXETDDSANF-30.000000	Taitien	TX	TCXO	30MHz	2.8 V ~ 3.3 V
TXETDDSANF-30.000000	Taitien	TX	TCXO	30MHz	2.8 V ~ 3.3 V
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32MHz	1.8V
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32MHz	1.8V
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32MHz	1.8V
TXEADCSANF-26.000000	Taitien	TX	VCTCXO	26MHz	2.8 V ~ 3.3 V
TXEADCSANF-26.000000	Taitien	TX	VCTCXO	26MHz	2.8 V ~ 3.3 V
TXEADCSANF-26.000000	Taitien	TX	VCTCXO	26MHz	2.8 V ~ 3.3 V
TXEADDSANF-40.000000	Taitien	TX	VCTCXO	40MHz	2.8 V ~ 3.3 V

高頻,超穩定的TCXO晶體振蕩器TKETTLJTNF-26.000000超級適合于衛星通訊,臺灣泰藝晶體公司發布TK系列還滿足同步以太網和時鐘數據包(ITU-T G.826x和G.827x)的定時要求。它符合IEEE1588標準的機架頂部交換機或葉式交換機拓撲的參考定時源要求。TK型TCXO在載頻100MHz時具有超低相位噪聲性能，遠端相位噪聲<-160dBc/Hz @ 1KHz偏置。因此，它是O-RAN基站、微波基站和小型蜂窩基站應用的理想選擇。

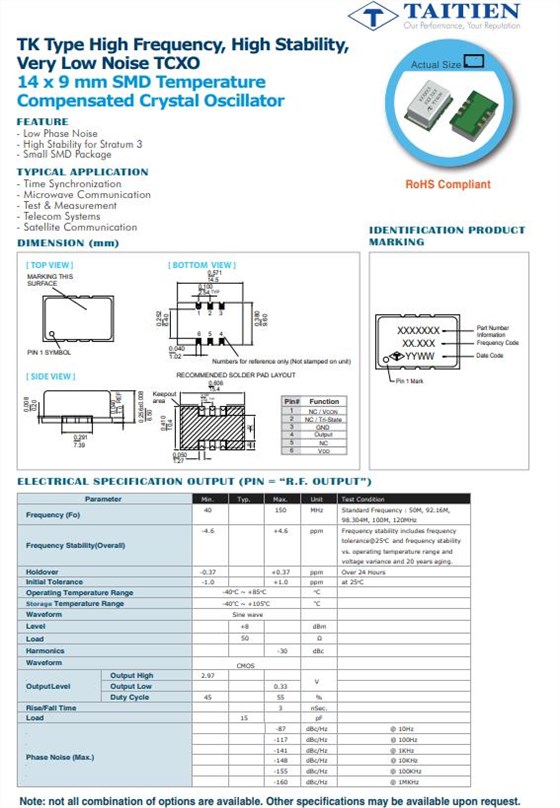

TKETTLJTNF-26.000000是一款大尺寸14*9mm的有源晶振,溫補晶振,TCXO晶體振蕩器,具備低相位噪聲的特點,產品性能3層穩定性高，SMD封裝小.

應用程序：時間同步,微波通信,測試和測量,電訊系統,衛星通訊.
