當前位置：首頁 » 歐美晶振 » QuartzChnik晶振 » 調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體

prevnext

調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體

頻率：75.000MHz

尺寸：6.0x3.5mm

調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體，德國進口晶振，Quarztechnik夸克晶振，型號：QTC6A，編碼為：QTC6A75.0000FBT3I30R，頻率為：75.000MHz，小體積晶振尺寸：6.0x3.5mm，四腳貼片晶振，陶瓷封裝和金屬蓋確保高可靠性，石英晶振，無源晶振，6035晶振，石英晶體諧振器，SMD晶振，無鉛晶振，具有緊密的公差和穩定性，超小型，輕薄型，高精度，高性能，高品質，高質量，耐熱及耐環境特點。高度低，適用于薄型設備，高密度應用，汽車電子晶振，調制解調器、通信和測試設備，MCIA，無線應用，汽車應用，通訊設備，無線網絡，智能家居等。

訂購熱線：86-0755-27838351

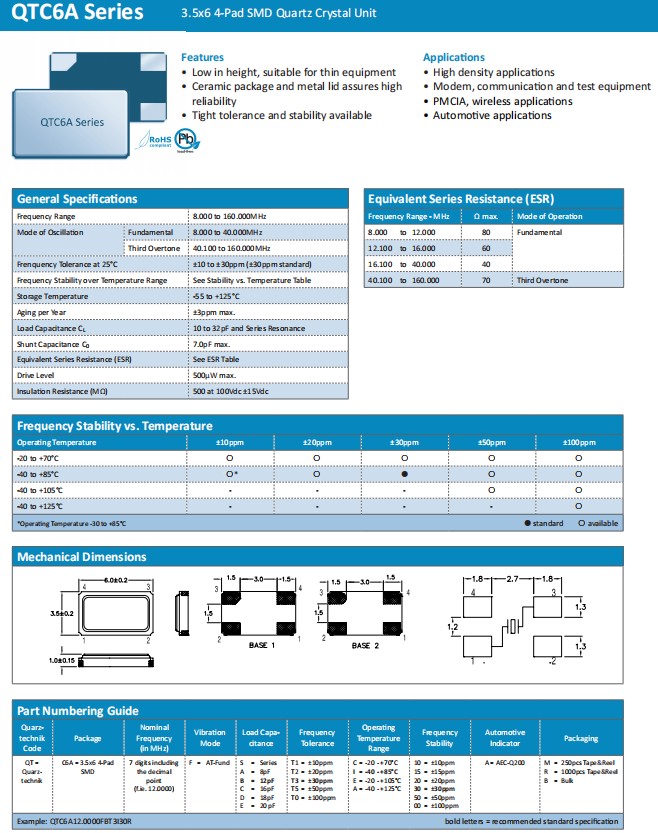

調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體,參數表

Frequency Range		75.000MHz
Mode of Oscillation	Fundamental	8.000 to 40.000MHz
	Third Overtone	40.000 to 160.000MHz
Frenquency Tolerance at 25°C		±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range		See Stability vs. Temperature Table
Storage Temperature		-55 to +125°C
Aging per Year		±3ppm max.
Load Capacitance CL		10 to 32pF and Series Resonance
Shunt Capacitance C0		7.0pF max.
Equivalent Series Resistance (ESR)		See ESR Table
Drive Level		500μW max.
Insulation Resistance (MΩ)		500 at 100Vdc ±15Vdc

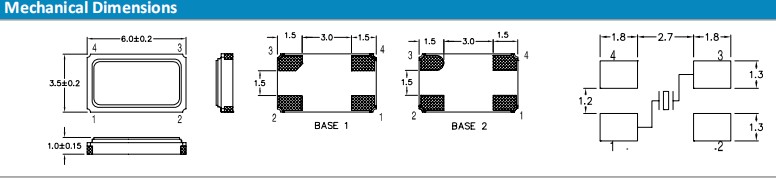

調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體,尺寸圖

調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體

產品特點：
外形尺寸：6.0x3.5mm
頻率范圍：8.000MHz~160.000MHz
高度低，適用于薄型設備，石英晶體諧振器
陶瓷封裝和金屬蓋確保高可靠性
具有緊密的公差和穩定性
高密度應用
調制解調器、通信和測試設備
PMCIA，無線應用
汽車應用

石英貼片晶振	頻率	負載電容	精度	穩定性	工作溫度范圍
QTC7A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A10.0000FDT1I20M	10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.31818FDT1I20M	14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A19.6608FDT1I20M	19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A8.00000FDT1I20M	8.0 MHz進口晶振	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.2880FDT1I20M	12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A15.3600FDT1I20M	15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A18.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A24.5760FDT1I20M	24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A30.0000FDT1I20M	30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A40.0000FDT1I20M	40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A48.0000FDT1I20M	48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3216.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3218.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3220.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3224.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3225.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3227.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C

調制解調器應用晶振 QTC6A75.0000FBT3I30R 夸克SMD石英晶體

采購：調制解調器應用晶振,QTC6A75.0000FBT3I30R,夸克SMD石英晶體

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：
