C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振

頻率：36MHZ

尺寸：7.0×5.0mm

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振，尺寸7.0×5.0mm，頻率36MHZ，美國Aker晶振，歐美進口晶振，安基無源晶振，石英振動子，無源貼片晶振，石英晶振，石英貼片晶振，石英晶體諧振器，7050mm石英晶振，無源晶振，SMD晶振，四腳貼片晶振，無鉛環保晶振，輕薄型晶振，低功耗晶振，低耗能晶振，低損耗晶振，低成本晶振，高質量晶振，高性能晶振，高品質晶振，影音系統晶振，娛樂設備晶振，小型設備晶振，便攜式設備晶振，移動通信晶振，安防專用晶振，播放器晶振，可穿戴設備晶振，數字視頻晶振，具有輕薄型高品質的特點，SMD晶振產品適合用于影音系統，娛樂設備，小型設備，便攜式設備，移動通信，安防，播放器，可穿戴設備，數字視頻等領域。C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振.
訂購熱線：86-0755-27838351
QQ咨詢 點擊這里給我發消息

1

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振，尺寸7.0×5.0mm，頻率36MHZ，美國Aker晶振，歐美進口晶振，安基無源晶振，石英振動子，無源貼片晶振，石英晶振，石英貼片晶振，石英晶體諧振器，7050mm石英晶振，無源晶振，SMD晶振，四腳貼片晶振，無鉛環保晶振，輕薄型晶振，低功耗晶振，低耗能晶振，低損耗晶振，低成本晶振，高質量晶振，高性能晶振，高品質晶振，影音系統晶振，娛樂設備晶振，小型設備晶振，便攜式設備晶振，移動通信晶振，安防專用晶振，播放器晶振，可穿戴設備晶振，數字視頻晶振，具有輕薄型高品質的特點，SMD晶振產品適合用于影音系統，娛樂設備，小型設備，便攜式設備，移動通信，安防，播放器，可穿戴設備，數字視頻等領域。C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振.

2

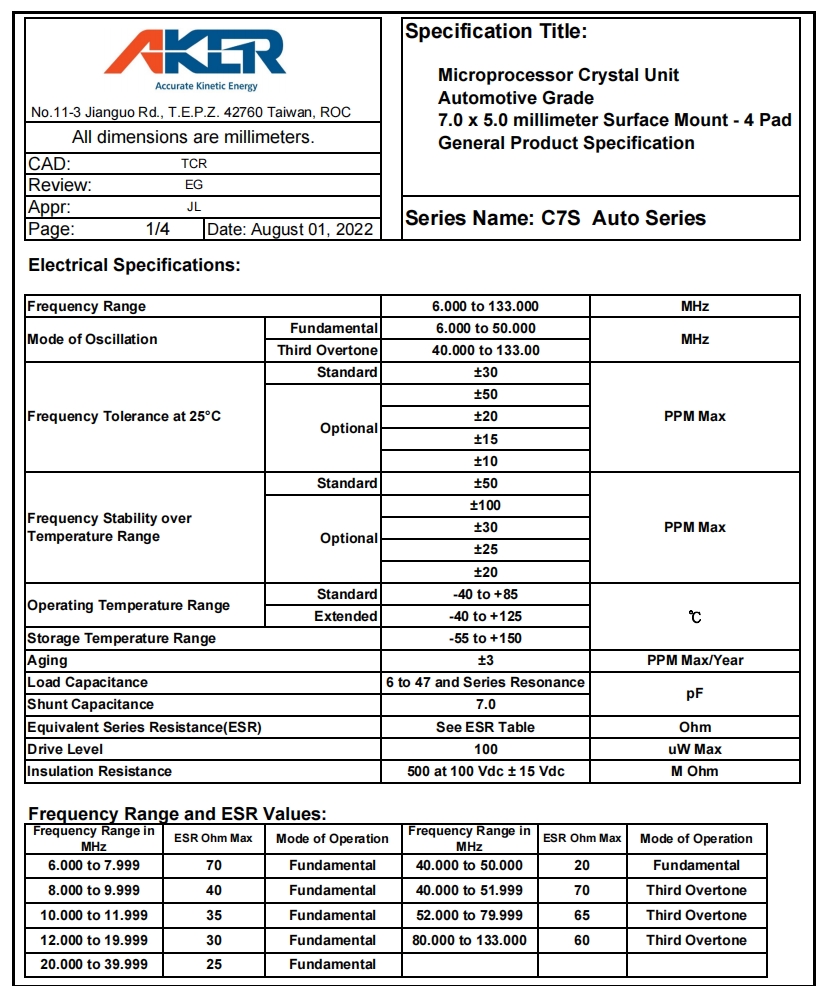

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振          參數表

Frequency Range 36.000 MHz
Mode of Oscillation Fundamental 6.000 to 50.000 MHz
Third Overtone 40.000 to 133.00
Frequency Tolerance at 25°C Standard ±30 PPM Max
Optional ±50
±20
±15
±10
Frequency Stability over
Temperature Range 		Standard ±50 PPM Max
Optional ±100
±30
±25
±20
Operating Temperature Range Standard -40 to +85 ℃
Extended -40 to +125
Storage Temperature Range -55 to +150
Aging ±3 PPM Max/Year
Load Capacitance 6 to 47 and Series Resonance pF
Shunt Capacitance 7.0
Equivalent Series Resistance(ESR) See ESR Table Ohm
Drive Level 100 uW Max
Insulation Resistance 500 at 100 Vdc ± 15 Vdc M Ohm
3

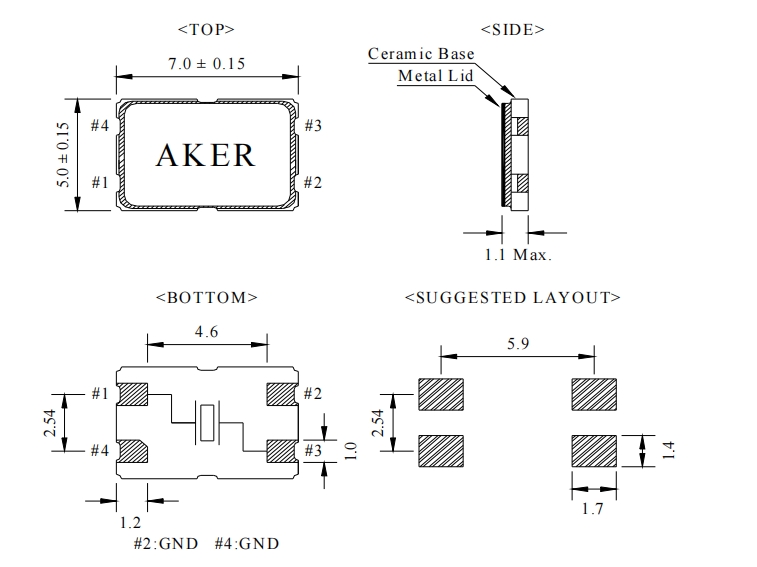

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振      尺寸圖

C7S

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振

石英晶體產品特點：

尺寸7.0x5.0mm

低老化特性

符合RoHS標準且無鉛

C7S 1

Mfr Part # 晶振廠家 Description Series Frequency Frequency Stability
C3E-24.000-12-1530-X-R Aker Technology Corp CRYSTAL 24.0000MHZ 12PF SMD C3E 24 MHz ±30ppm
C3E-24.000-12-3030-X-R Aker Technology Corp CRYSTAL 24.0000MHZ 12PF SMD C3E 24 MHz ±30ppm
C3E-24.000-18-1010-R Aker Technology Corp CRYSTAL 24.0000MHZ 18PF SMD C3E 24 MHz ±10ppm
C3E-20.000-10-1530-X-R Aker Technology Corp CRYSTAL 20.0000MHZ 10PF SMD C3E 20 MHz ±30ppm
C3E-25.000-8-1530-X-R Aker Technology Corp CRYSTAL 25.0000MHZ 8PF SMD C3E 25 MHz ±30ppm
C3E-24.000-12-1015-X-R Aker Technology Corp CRYSTAL 24.0000MHZ 12PF SMD C3E 24 MHz ±15ppm
C3E-24.000-10-1015-X-R Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C3E 24 MHz ±15ppm
C3E-16.000-12-1015-X-R Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C3E 16 MHz ±15ppm
C3E-40.000-10-1015-X-R Aker Technology Corp CRYSTAL 40.0000MHZ 10PF SMD C3E 40 MHz ±15ppm
C3E-32.000-8-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C3E 32 MHz ±15ppm
C3E-32.000-10-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 10PF SMD C3E 32 MHz ±15ppm
C3E-32.000-12-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 12PF SMD C3E 32 MHz ±15ppm
C2E-24.000-10-1010-R Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C2E 24 MHz ±10ppm
C2E-16.000-12-3030-X-R Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C2E 16 MHz ±30ppm
C2E-25.000-10-3030-X-R Aker Technology Corp CRYSTAL 25.0000MHZ 10PF SMD C2E 25 MHz ±30ppm
C2E-16.000-8-1530-X-R Aker Technology Corp CRYSTAL 16.0000MHZ 8PF SMD C2E 16 MHz ±30ppm
C3E-8.000-10-3030-R Aker Technology Corp CRYSTAL 8.0000MHZ 10PF SMD C3E 8 MHz ±30ppm
C3E-8.000-10-3030-X-R Aker Technology Corp CRYSTAL 8.0000MHZ 10PF SMD C3E 8 MHz ±30ppm
C3E-8.000-18-3030-X-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±30ppm
C3E-8.000-18-3030-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±30ppm
C1E-32.000-10-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 10PF SMD C1E 32 MHz ±15ppm
C1E-25.000-20-2030-R Aker Technology Corp CRYSTAL 25.0000MHZ 20PF SMD C1E 25 MHz ±30ppm
C1E-24.000-10-1015-R Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±15ppm
C1E-24.000-10-1010-R Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±10ppm
C1E-32.000-8-1515-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C1E 32 MHz ±15ppm
C3E-16.000-12-1015-X-M Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C3E 16 MHz ±15ppm
C16-32.000-8-3030-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C16 32 MHz ±30ppm
C16-26.000-8-1520-R Aker Technology Corp CRYSTAL 26.0000MHZ 8PF SMD C16 26 MHz ±20ppm
C5S-26.000-16-1010-R Aker Technology USA CRYSTAL 26.0000MHZ 16PF SMD C5S 26 MHz ±10ppm
C5S-8.000-18-3030-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C5S 8 MHz ±30ppm
CAA-4.000-18-3050-X-R Aker Technology Corp CRYSTAL 4MHZ 18PF SMD CAA 4 MHz ±50ppm
CAA-11.0592-18-3050-R Aker Technology Corp CRYSTAL 11.0592MHZ 18PF SMD CAA 11.0592 MHz ±50ppm
CAA-8.000-18-3050-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD CAA 8 MHz ±50ppm
CAA-40.000-18-3050-R Aker Technology Corp CRYSTAL 40MHZ 18PF SMD CAA 40 MHz ±50ppm
C3E-24.000-9-1010-R Aker Technology Corp CRYSTAL 24MHZ 9PF SMD C3E 24 MHz ±10ppm
C3E-12.000-12-1020-X-R Aker Technology Corp CRYSTAL 12MHZ 12PF SMD C3E 12 MHz ±10ppm
C3E-12.000-18-1020-X-R Aker Technology Corp CRYSTAL 12MHZ 18PF SMD C3E 12 MHz ±10ppm
C3E-25.000-20-1015-X-R Aker Technology Corp CRYSTAL 25MHZ 20PF SMD C3E 25 MHz ±15ppm
C3E-24.000-9-1015-X-R Aker Technology Corp CRYSTAL 24MHZ 9PF SMD C3E 24 MHz ±15ppm
C3E-16.000-9-1015-X-R Aker Technology Corp CRYSTAL 16MHZ 9PF SMD C3E 16 MHz ±15ppm
C2E-12.000-18-1020-R Aker Technology Corp CRYSTAL12MHZ 18PF SMD C2E 12 MHz ±20ppm
C3E-8.000-20-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 12PF SMD C3E 8 MHz ±20ppm
C3E-8.000-18-1020-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD C3E 8 MHz ±20ppm
C3E-8.000-8-1015-R Aker Technology Corp CRYSTAL 8MHZ 8PF SMD C3E 8 MHz ±10ppm
C3E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C3E X1 12 MHz ±50ppm
C3E-16.000-10-3050-X1-R Aker Technology Corp CRYSTAL 16MHZ 10PF SMD AEC-Q200 C3E X1 16 MHz ±50ppm
C16-32.000-8-1515-X-R Aker Technology Corp CRYSTAL 32MHZ 8PF SMD C16 32 MHz ±15ppm
C3E-20.000-8-3050-X1-R Aker Technology Corp CRYSTAL 20MHZ 8PF SMD AEC-Q200 C3E X1 20 MHz ±50ppm
C2E-12.000-18-1020-X-R Aker Technology Corp CRYSTAL12MHZ 18PF SMD C2E 12 MHz ±20ppm
C5S-12.000-18-1020-R Aker Technology Corp CRYSTAL 12.0000MHZ 18PF SMD C5S 12 MHz ±20ppm
C3E-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±20ppm
C3E-8.000-12-1020-M Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C3E 8 MHz ±10ppm
C2E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm
C3E-16.000-10-2050-X1-R Aker Technology Corp CRYSTAL 10MHZ 10PF SMD AEC-Q200 C3E X1 10 MHz ±50ppm
C3E-30.000-8-2050-X1-R Aker Technology Corp CRYSTAL 30MHZ 8PF SMD AEC-Q200 C3E X1 30 MHz ±50ppm
C7S-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12MHZ 12PF SMD C7S 12 MHz ±30ppm
C7S-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C7S 8 MHz ±20ppm
C7S-8.000-18-1030-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD C7S 8 MHz ±30ppm
CA4-16.000-18-3050-R Aker Technology Corp CRYSTAL 16MHZ 18PF SMD CA4 16 MHz ±50ppm
CA4-8.000-16-3050-R Aker Technology Corp CRYSTAL 8.000MHZ 16PF SMD CA4 8 MHz ±50ppm
C3E-8.000-10-1020-M Aker Technology Corp CRYSTAL 8MHZ 10PF SMD C3E 8 MHz ±20ppm
C16-96.000-8-1520-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD - 96 MHz ±15ppm
C1E-76.800-10-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 10PF SMD C1E 76.8 MHz ±10ppm
